With the semi-automatic grinding and polishing machines both single and central pressure can be applied. The central pressure allows grinding and polishing of mounted, unmounted and oversized specimens. In combination with a removal measurement, grinding can be done automatically to a defined sample height if required. With single pressure, up to six samples (depending on sample holder) of different sizes can be processed in one sample holder by pressing on individual plungers.
No. of samples: 1-6
- Single or twin wheel unit
- Working wheels ø 200/250 mm
- Programmable memory for reproducible results
- No. of samples (single pressure) 1-6 samples ø 40 mm
- Single or twin wheel unit
- Working wheels ø 250/300 mm
- Programmable memory for reproducible results
- No. of samples (single pressure) 1-6 samples ø 50 mm
- Working wheels ø 200 - 300 mm
- Single and central pressure 6x ø 50 mm
- Programmable memory for reproducible results
- Dosing system (option) 6-fold
- Single wheel unit
- Working wheels ø 200-300 mm
- Single and central pressure 6x ø 50 mm
- Programmable memory for reproducible results
- Dosing system (option) 6-fold
- Twin wheel unit
- Working wheels ø 300 / 350 mm
- Central pressure 50 – 750 N
- Integrated cleaning station (optional)
- Integrated modular dosing system (optional)

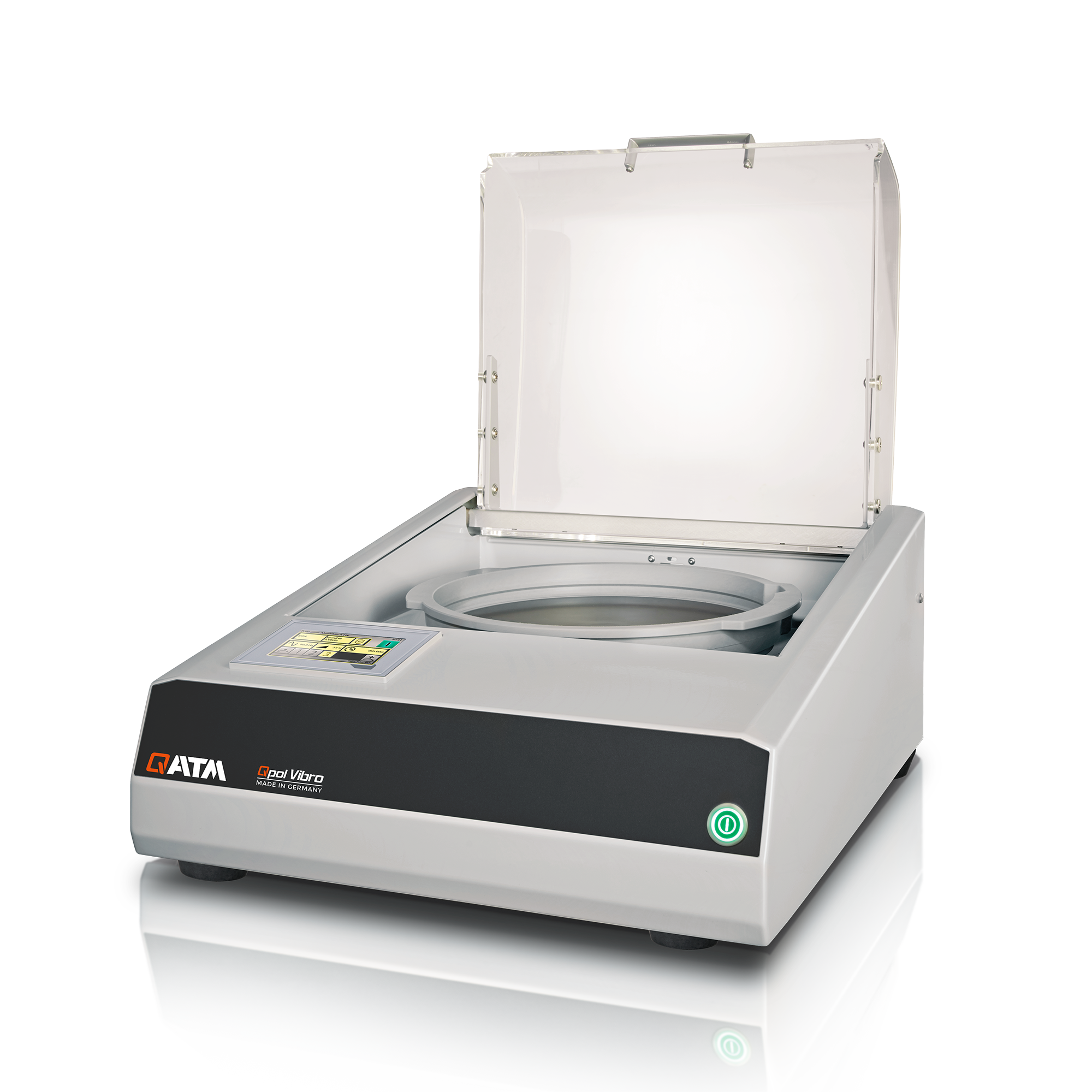

- Inner diameter of the tub Ø 308 mm
- Vibration frequency 60 - 120 Hz, automatically regulated
- Ambient temperature 10 - 40 °C
- Drive power 135 VA
- Interfaces USB, Ethernet
- Connected load 0.25 kVA
